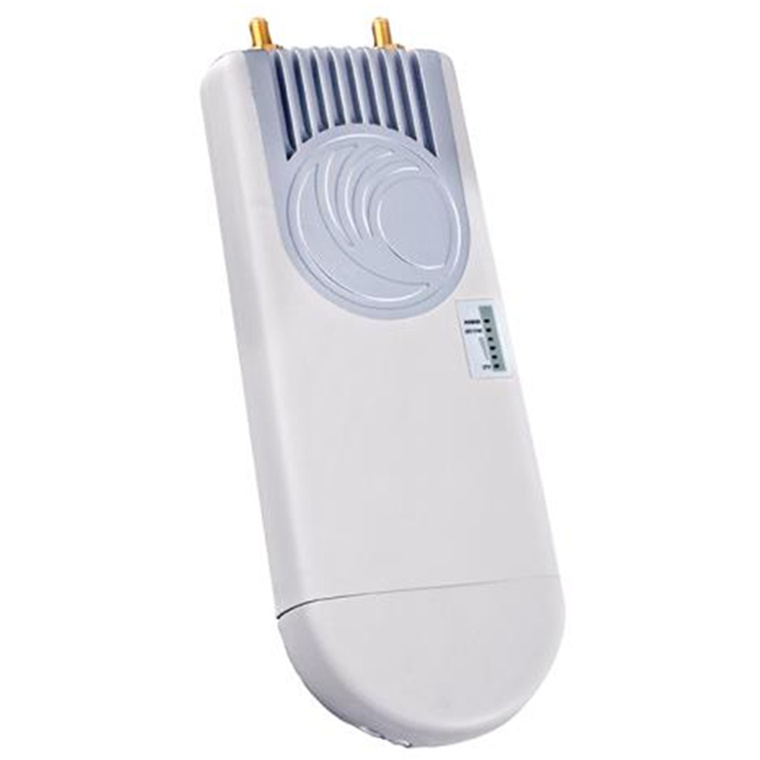

Cambium Networks C025900A621A Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW)
Cambium Networks C025900A621A Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW)
- Brand: Cambium Networks
- MPN: C025900A621A
- Part #: NETCBN1068
- UPC:
- Brand: Cambium Networks
- MPN: C025900A621A
- Part #: NETCBN1068
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking
Cambium Networks C025900A621A Cambium ePMP 1000 2.5GHz CPE Connectorised Radio (ROW)
- Brand: Cambium Networks
- MPN: C025900A621A
- Part #: NETCBN1068
Product URL: https://www.pbtech.com/pacific/product/NETCBN1068/Cambium-Networks-C025900A621A-Cambium-ePMP-1000-25
Features
ContentsWireless service providers and enterprises need reliable, high-quality broadband connectivity that can be rapidly deployed and expanded. The ePMP architecture provides highly scalable broadband access solution that will allow you to build and expand your network with a faster return on investment. Cambium Networks' radios deliver bandwidth-intensive services such as VoIP, video and data to end users in multiple vertical markets, with high performance and exceptional reliability. Using the 2.5 GHz frequency spectrum, the ePMP architecture is the most effective connectivity solution for reaching the under and unconnected around the world.
Cambium Networks' ePMP 1000 Connectorised Radio provides more than 150 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.
The ePMP 1000 Connectorised Radio has the exibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni and high-gain panel or dish antennas. This versatility allows service providers to con gure their network using high gain antennas to satisfy the most challenging environments.
The ePMP 1000 Connectorised Radio can be configured as a Subscriber Module, an unsynchronised Access Point, or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronised Radio in either a PMP or PTP deployment forming a GPS Synchronised solution.
- Suitable for Managed Spectrum Park (MSP) 2.6GHz
- Covers 2580 - 2620 MHz frequencies
Specifications
Manufacturer's Code
C025900A621A
Output Power
-17 to +26 dBm (combined, to regional EIRP limit) (1 dB interval)
Channel Width
5 / 10 / 20 / 40 MHz
Frequency Range
2570 - 2620 MHz
Protocols Used
IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Interfaces
100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5)
Temperature Range
-30°C to +60°C (-22°F to +140°F)
PoE In
10 - 30V
Max Power consumption
7 W Maximum, 5 W Typical
Polarisation
2x2 MIMO/OFDM
Wind Loading
145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas
Dimensions
29.1 x 14.5 x 8.3 cm
IP Rating
IP55
