StarTech.com USB 3.0 Dual 2K Docking Station. HDMI x1, DVI x1, VGA x1, USB3.0 x3, 3.5mm Audio-in x1, 3.5mm Audio-out x1, RJ45 x1

  • Brand: StarTech.com
  • MPN: USB3SDOCKHDV
  • Part #: NBASTT690103
  • UPC: 065030851299
5
PB Tech price
NZD $ 178 .26 $ 178 .26
In stock
Delivery: Order now and it ships on 04 Nov
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$178.26  +GST
$178.26
Add To Compare
Stock Alerts
+ 5 More
Click or hover over image to enlarge
  • Brand: StarTech.com
  • MPN: USB3SDOCKHDV
  • Part #: NBASTT690103
  • UPC: 065030851299

4K Support

No

DisplayPorts

None

HDMI Ports

1

Google Chrome Support

No Support

Intel Driven Apple Support

Dual Display

M1 Driven Apple Support

Not Specified

Microsoft Windows Support

Dual Display

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Did the job I wanted it to do after a little bit of configuring. Recommend this product."

G
By: Guest 01/07/24

"great purchase for the price"

G
By: Guest 20/09/21

"Very happy. Simple but effective."

G
By: Guest 07/05/20

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the StarTech.com USB 3.0 Dual 2K Docking Station. HDMI x1, DVI x1, VGA x1,...
StarTech.com USB 3.0 Dual 2K Docking Station. HDMI x1, DVI x1, VGA x1, USB3.0 x3, 3.5mm Audio-in x1, 3.5mm Audio-out x1, RJ45 x1
Brateck LUMI LDT11-C024 13''-27'' Dual monitor desk mount - Max load: 8kg per arm - Supports VESA 75x75 & 100x100 - Extend, tilt and swivel - Max arm extension - 792mm - Colour: Slate black & metallic grey
Cruxtec 2m HDMI 2.0 Cable -- 18Gbps , 4K/60Hz
Total:
NZD $ 246 .42
NZD $ 246 .42
Buy together and save $6.91 $6.91
Brateck LUMI LDT11-C024 13''-27'' Dual monitor desk mount - Max load: 8kg per arm - Supports VESA 75x75 & 100x100 - Extend, tilt and swivel - Max arm extension - 792mm - Colour: Slate black & metallic grey
Brateck LUMI LDT11-C024 13''-27'' Dual monitor desk mount - Max load: 8kg per arm - Supports VESA 75x75 & 100x100 - Extend, tilt and swivel - Max arm extension - 792mm - Colour: Slate black & metallic grey

Brateck LUMI LDT11-C024 13''-27'' Dual monitor desk mount - Max load: 8kg per arm - Supports VESA...

Collect from 18 stores on 07 Nov
Ships on 04 Nov
$65.95 $65.95
NZD

$60.56

$60.56

You save 8% You save 8%
Cruxtec 2m HDMI 2.0 Cable -- 18Gbps , 4K/60Hz
Cruxtec 2m HDMI 2.0 Cable -- 18Gbps , 4K/60Hz

Cruxtec 2m HDMI 2.0 Cable -- 18Gbps , 4K/60Hz

Collect from 18 stores on 07 Nov
Ships on 04 Nov
$9.12 $9.12
NZD

$7.60

$7.60

You save 16% You save 16%

Features


This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.

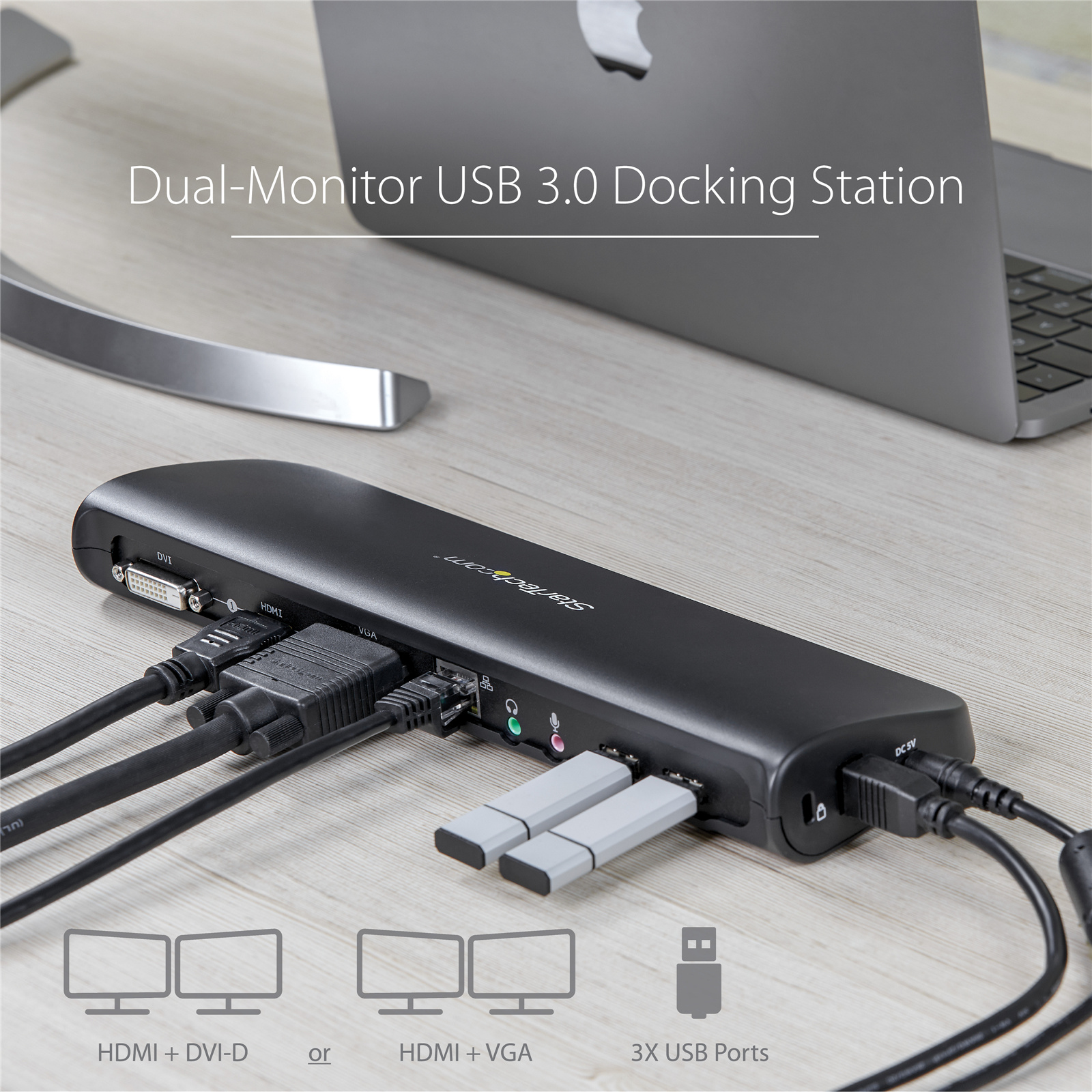

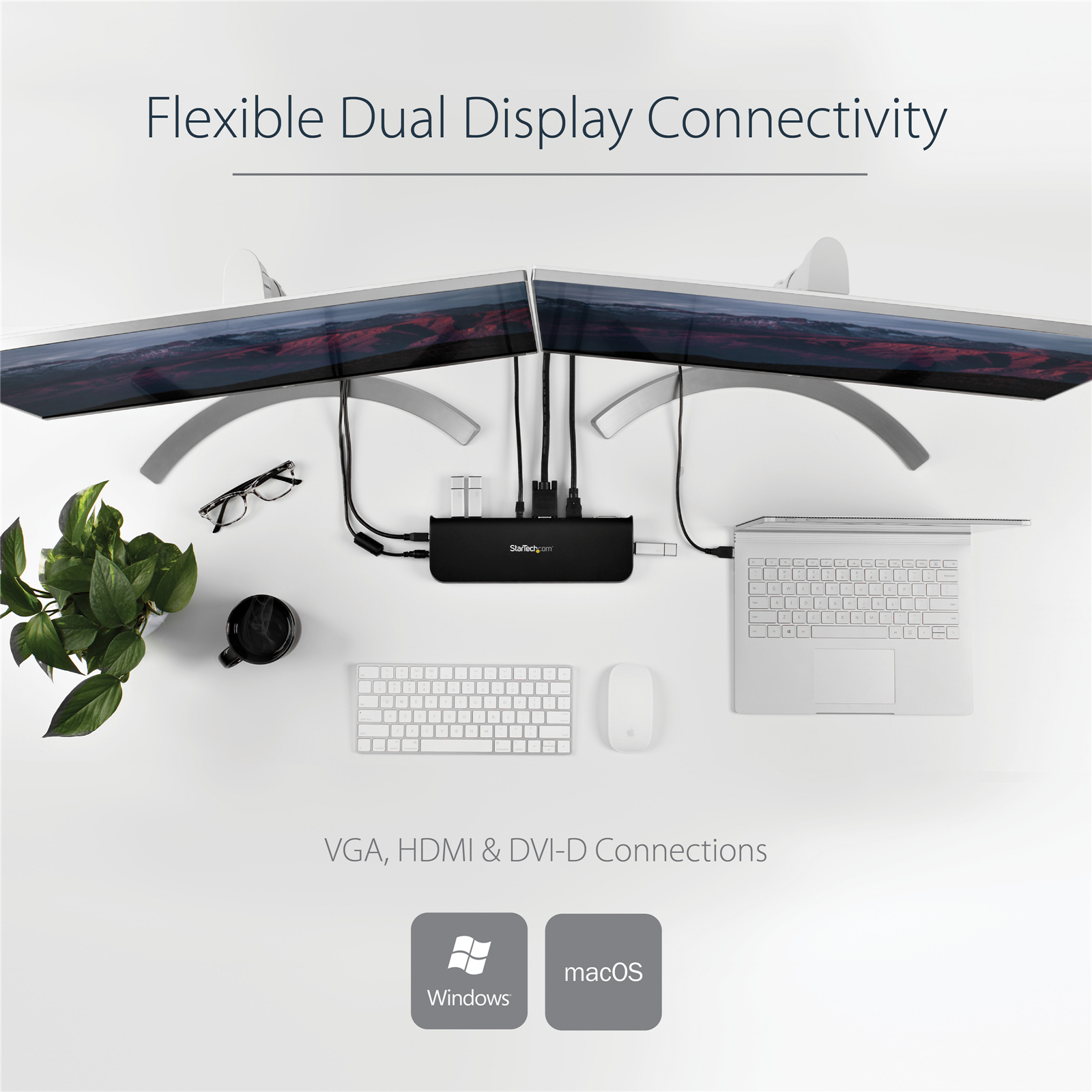

Display Adaptability

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

Available display combinations:

- HDMI + VGA
- HDMI + DVI

Integrated USB Hub

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.

Applications

- Shared workspaces
- Hot/Remote desks
- Convert laptop to desktop workstation

The StarTech.com Advantage

- Save time by connecting multiple peripherals through a single cable
- Increase available screen space with dual independent HD video outputs
- Expand connectivity with additional USB 3.0 ports

Specifications

HARDWARE

4K Support

No

Bus Type

USB 3.0

Chipset ID

DisplayLink - DL-3900
Genesys Logic - GL3520
Realtek - RTL8211E

Displays Supported

2

Fast-Charge Port(s)

No

Industry Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0

PERFORMANCE

Audio Specifications

The HDMI port supports audio output

Auto MDIX

Yes

Compatible Networks

10/100/1000 Mbps

Full Duplex Support

Yes

Maximum Analog Resolutions

2048x1152 (VGA)

Maximum Data Transfer Rate

5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)

Maximum Digital Resolutions

1920x1200 (DVI-D)
1920x1080 (HDMI)
Lower resolutions are also supported.

Type and Rate

USB 3.0 - 5 Gbit/s

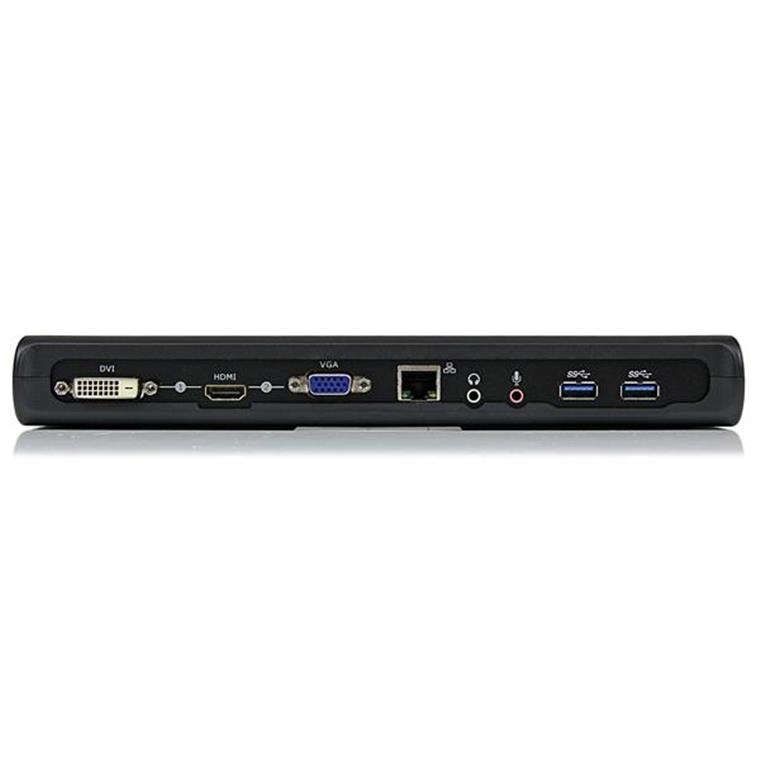

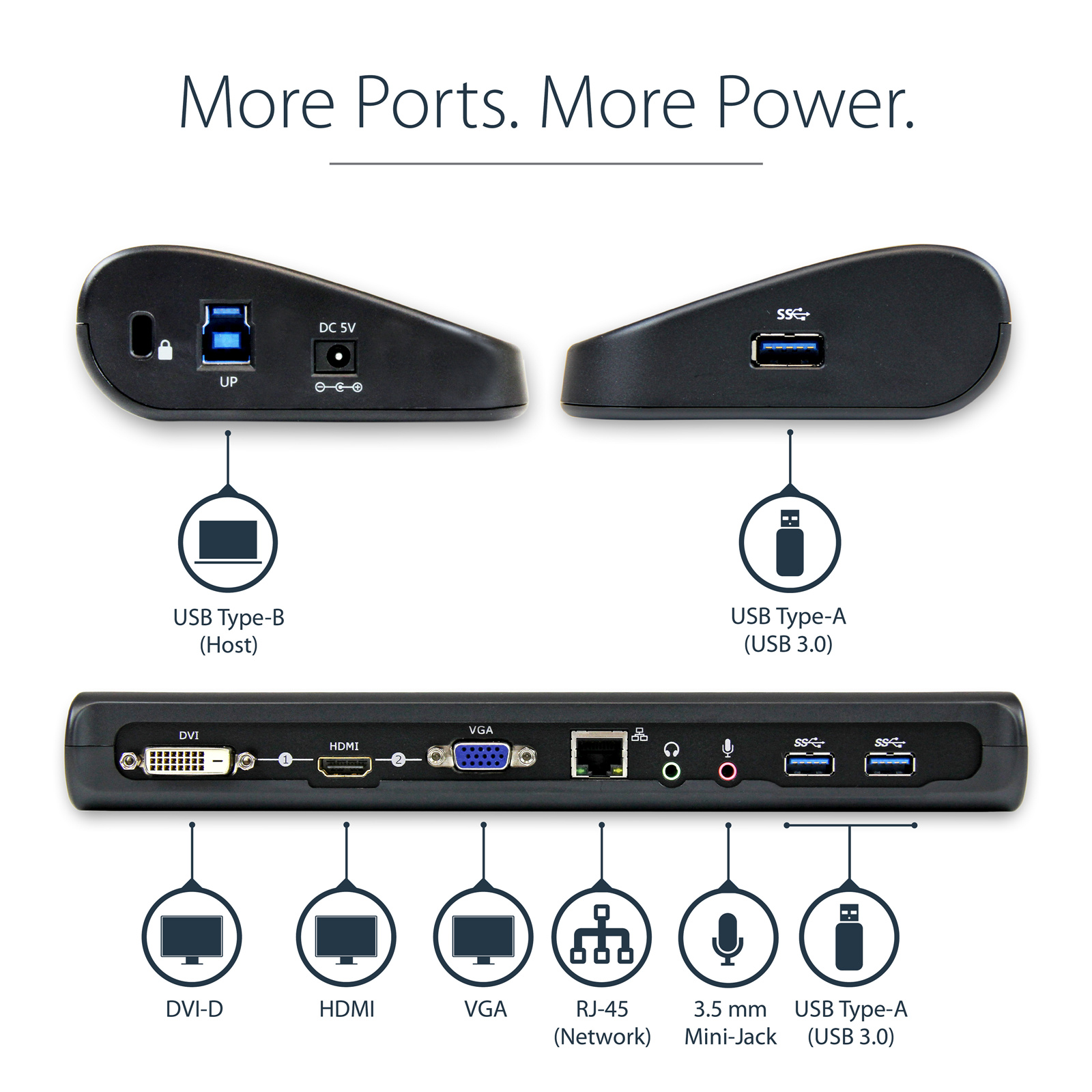

CONNECTOR(S)

Connector Type(s)

1 - DVI-D (25 pin) Female
1 - HDMI (19 pin) Female
1 - RJ-45 Female

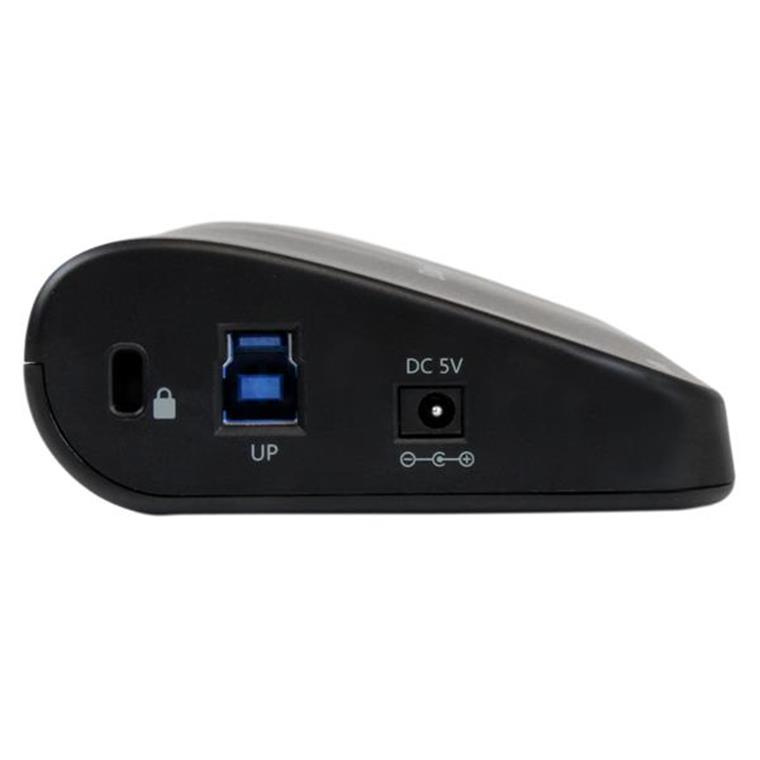

1 - USB Type-B (9 pin) USB 3.0 Female
1 - VGA (15 pin, High Density D-Sub) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
3 - USB Type-A (9 pin) USB 3.0 Female

SOFTWARE

OS Compatibility

Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14

SPECIAL NOTES / REQUIREMENTS

System and Cable Requirements

Available AC electrical outlet
HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables
USB 3.0 enabled computer system with available USB 3.0 port

POWER

Center Tip Polarity

Positive

Input Current

0.9 A

Input Voltage

100 ~ 240 AC

Output Current

4 A

Output Voltage

5 DC

Plug Type

B

Power Consumption (In Watts)

20

Power Source

AC Adapter Included

ENVIRONMENTAL

Humidity

0~90% RH

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-10°C to 60°C (14°F to 140°F)

PHYSICAL CHARACTERISTICS

Cable Length

3 ft [0.9 m]

Color

Black

Enclosure Type

Plastic

Product Height

1.7 in [44 mm]

Product Length

12 in [304 mm]

Product Weight

10.4 oz [295 g]

Product Width

7 in [178 mm]

Manufacturer Part No:
USB3SDOCKHDV
Brand:
StarTech.com
Product Type:
Docking Station.
UPC
065030851299
Product Family:
-
Shipping Weight:
0.921 kg
PB Part No:
NBASTT690103
Product Model:
USB 3.0 Dual 2K
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
