Fanvil Hospitality H1 black hotel phone with HD audio, SIP hotspot, customisable faceplate & 8 BLFkeys (optional PSU sold separately)

PB Tech price
PB Tech price
NZD $ 95 .00
$ 95 .00
$95.00  +GST
$95.00

Fanvil Hospitality H1 black hotel phone with HD audio, SIP hotspot, customisable faceplate & 8 BLFkeys (optional PSU sold separately)

  • Brand: Fanvil
  • MPN: FAN-H1-B
  • Part #: IPHFAN1097
  • UPC:
PB Tech price
NZD $ 95 .00 $ 95 .00
Hurry, only 2 units left!


Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$95.00  +GST
$95.00
  • Brand: Fanvil
  • MPN: FAN-H1-B
  • Part #: IPHFAN1097
  • UPC:

Colour

Black

Interface

Not Specified

Microphone

Yes

Microphone Noise Cancelling

Not Specified

Noise Cancelling

Not Specified

Sound Mode

Not Specified

Wireless Technology

Not Specified

Features

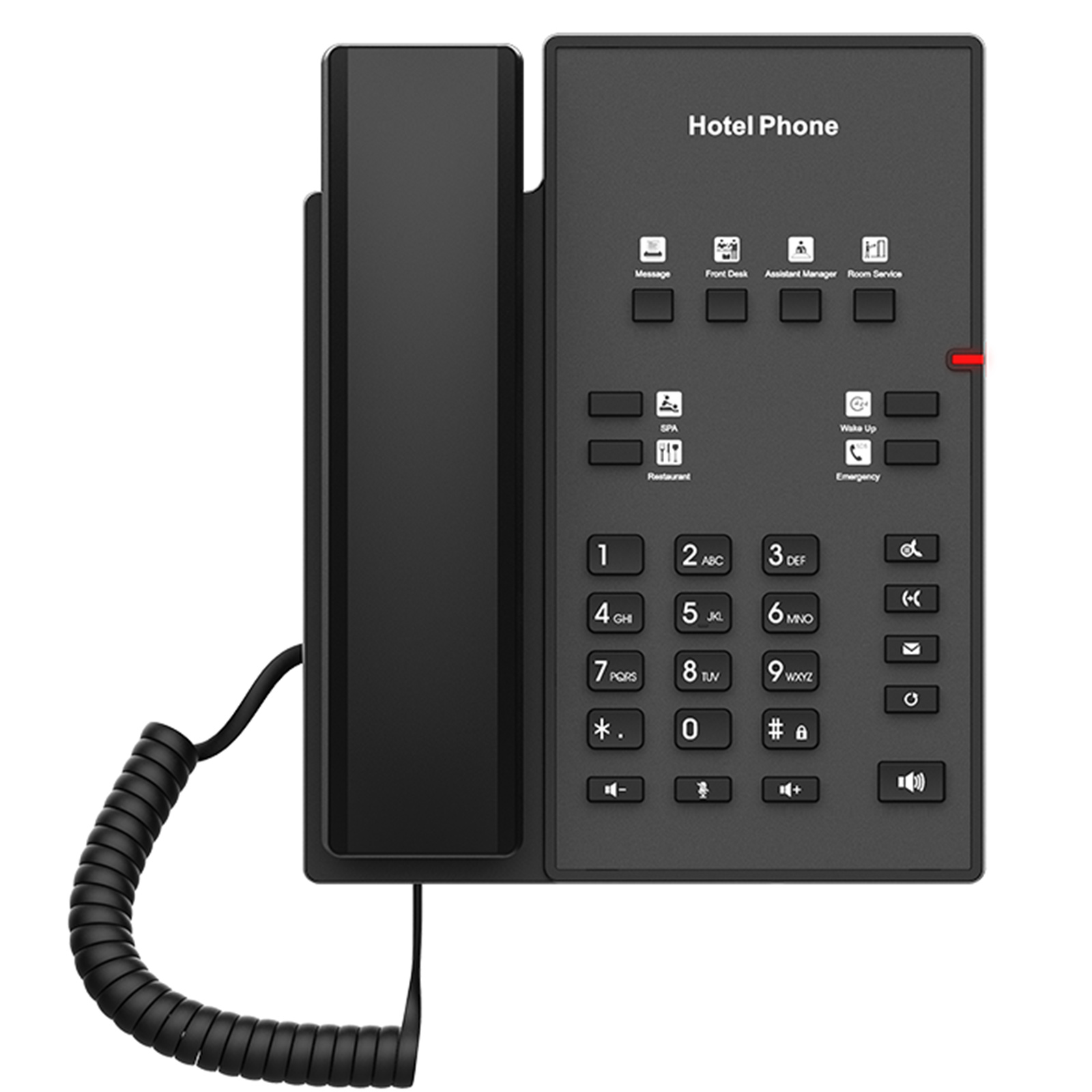

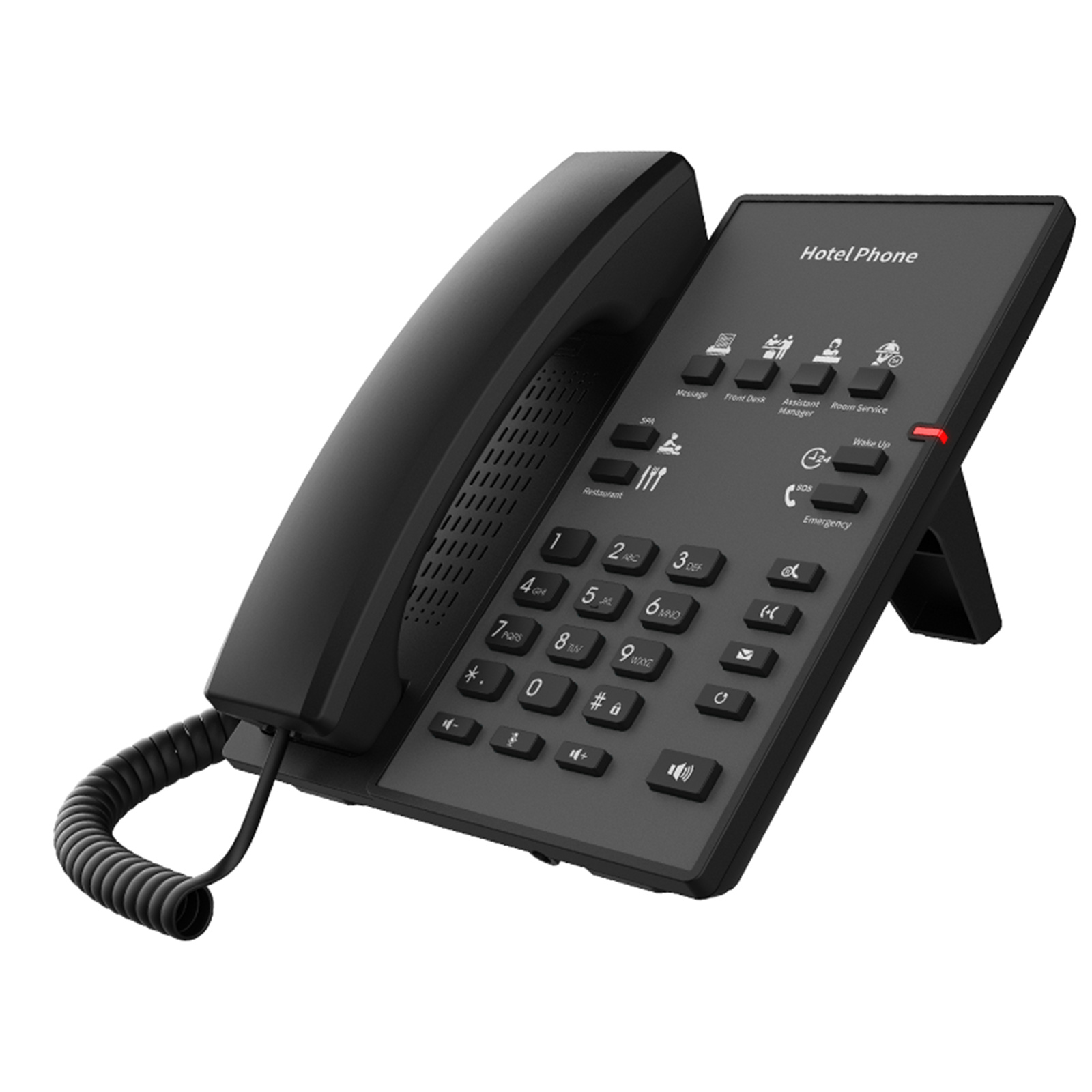

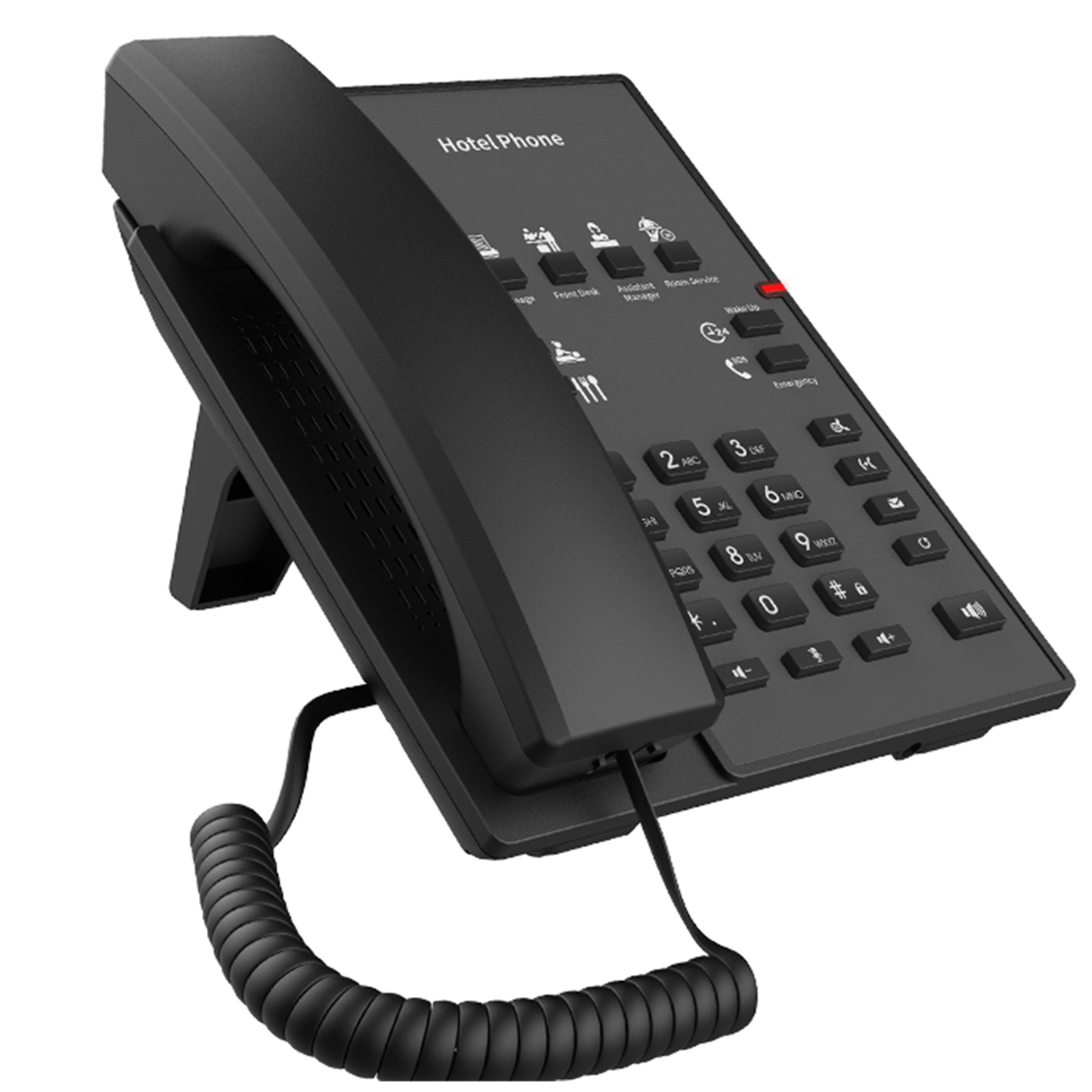

Fanvil  H1 black hotel IP phone

Fanvil H1 is a hotel IP phone with a cost-effective, multi-function, and elegant appearance. It is equipped with 8 programmable soft keys for the services hotline, meeting the application requirements of various hotel scenarios. In addition, H1 supports functions such as HD audio, 10/100Mbps network port, and integrated PoE, providing a high-quality user experience and reducing the cost of hotel deployment. It is more than a hotel phone and also can be applied in multiple scenarios, such as shopping malls, hospitals, and supermarkets.

- Elegant and fashionable product appearance
- 8 programmable soft keys for service hotline
- Unique customized faceplate
- Support audio codec G.722 and Opus, handling varieties of audio applications
- 10/100 Mbps port, integrated PoE
- Two installation methods of desktop stand and wall mountable

Specifications

Generic

2 SIP Lines ?
HD Voice ?
PoE
Hand set / Hands-free mode ?
Intelligent DSS Keys (speed dial key)
Desktop Stand / Wall Mountable(optional)
Optional External Power Supply

Phone Functions

Call logs (In/Out/Missed, Max support 600 records in the web)
Programmable DSS/soft keys ?
Action URL / Active URI
Web dial
Dial plan ?
SIP Hotspot
Distinctive ring
Multicast

Call Functions

Call out / Answer ?
Mute / Unmute ?
Call Hold / Resume ?
Speed Dial
Redial
Call Forward (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Hot Line ? Voice Message

Audio

Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711A/U, G.729AB, G723.1, G726, iLBC?
Wideband codec: G.722, Opus ?
Full-duplex hands-free speakerphone with AEC
Voice Activity Detection (VAD) / Comfort Noise Generation(CNG)/ Background Noise Estimation (BNE) / Noise Reduction(NR)/Automatic Gain Control (AGC)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer ?
DTMF: In-band, Out-of-Band - DTMF-Relay (RFC2833) / SIPINFO?
VQM voice quality monitoring

Network

10/100 Mbps Ethernet
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
Network Access Control: 802.1x ? VPN: L2TP / OpenVPN
VLAN: 802.1P/Q
QoS
LLDP
RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Management

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web management portal
Web-based packet dump
Configuration export / import
Firmware upgrade
Syslog

Physical Specifications

Keypad: 28 keys, including
12 Standard Phone Digits keys
8 DSS keys
4 Function keys (Hold, Call Transfer, Redial, MWI)
3 Volume Control keys, Up/Down/Mute(with red color LED)
1 hands-free key
MSG indicator (with red color LED) x1
Handset (RJ9) x1
Standard RJ9 Handset Cord x1
1.5M CAT5 Ethernet Cable x1
RJ9 Port x1: Handset x1
RJ45 Port x1: Network x1
Power: 5V/0.6A or PoE
Power Consumption (PoE): 1.28W~ 2.12W?
Power Consumption (Adapter): 0.669W~ 1.438W?
Working Temperature: 0~45?? Working Humidity: 10~95%
Installation: ?
Desktop
Wall Mountable (optional)
Device Dimensions:
Desktop Stand (31°):169x184x124mm?
Desktop Stand (35°):169x184x135mm?
Wall Mountable:169x95.3x201.6mm

Manufacturer Part No:
FAN-H1-B
Brand:
Fanvil
Product Type:
-
UPC
-
Product Family:
Hospitality
Shipping Weight:
0.5 kg
PB Part No:
IPHFAN1097
Product Model:
H1
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
