Edimax GS-1016 V2 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking andJumboFrames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.
Edimax GS-1016 V2 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking andJumboFrames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.
- Brand: Edimax
- MPN: GS-1016V2
- Part #: SWHEDM1044
- UPC:
View all shipping info
What PB Tech customers are saying about this product...

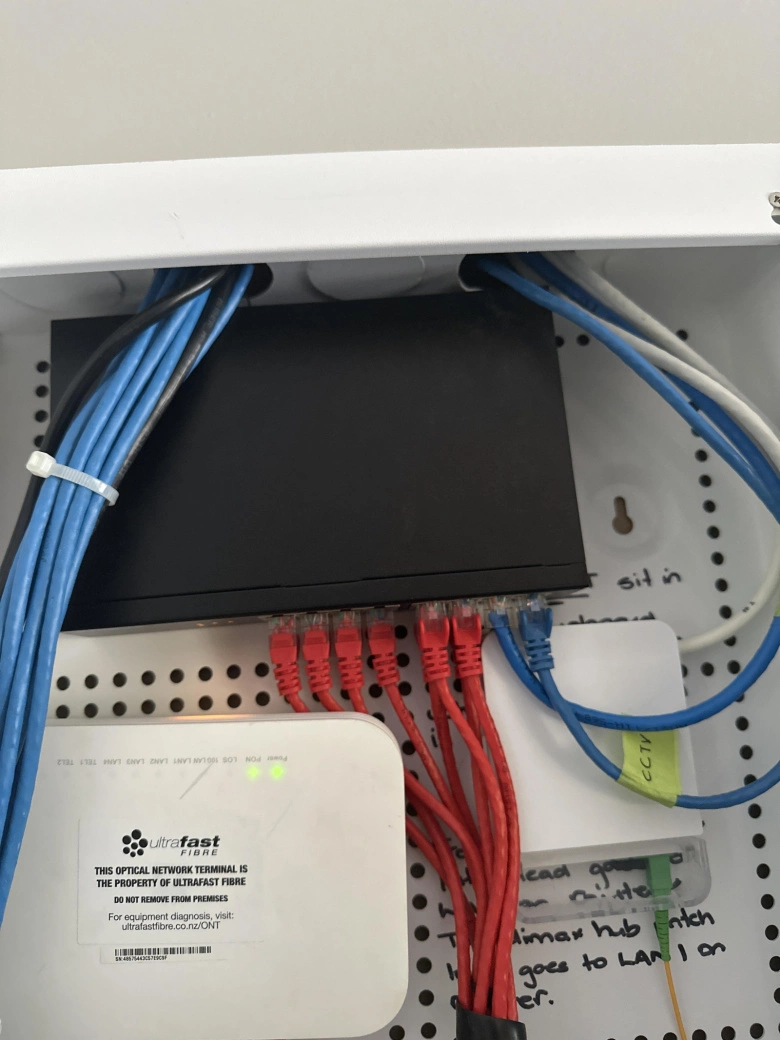

See More Reviews"Great product for home use. Does it all and cost effective. Edmux 16 port switch."
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Edimax GS-1016 V2 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking andJumboFrames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.
- Brand: Edimax
- MPN: GS-1016V2
- Part #: SWHEDM1044
Product URL: https://www.pbtech.com/au/product/SWHEDM1044/Edimax-GS-1016-V2-16-Port-101001000-Gigabit-Rack-m
Features
EDIMAX 16 Port 10/100/1000 Gigabit Rack-mount Unmanaged Switch. High-Speed Networking and Jumbo Frames. Designed for Medium / Large Network Environments. Includes Rack -mount Brackets.
Gigabit High Speed
Equipped 16 Gigabit Ethernet ports with full-duplex and 10K jumbo frames support
QoS for Improved Traffic
Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
High Performance & Reliable Connection
Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
Energy Efficient & Power Saving
Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
Plug-and-Play & Flexible Deployment
No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment
Specifications
Ports
16 x RJ-45 10/100/1000Base-T ports
Transmission Method
Store and forward
LED Indicator
Per-port: Link/Act
Per unit: Power
Power Input
100V~240V AC, 50~60Hz, internal power supply
Mounting
Desktop / wall-mount / rack-mount (rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimension
215(W) x 42(H) x 133(D) mm
Weight
0.85kg
PERFORMANCE
Switching Capacity
32Gbps
MAC Address
8K
Buffer Memory
4.1Mb
Jumbo Frame
10K (Bytes)
Filtering / Forwarding Rates
Max. 23.8Mpps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy-efficient Ethernet
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
