HP POLY CERT VIDEO 83Z52AA Poly Studio X70 All-In-One Video Bar with TC8 Controller Kit-AUST
- Brand: HP
- MPN: 83Z52AA
- Part #: IPHHPE6076513
Product URL: https://www.pbtech.com/au/product/IPHHPE6076513/HP-POLY-CERT-VIDEO-83Z52AA-Poly-Studio-X70-All-In
Features

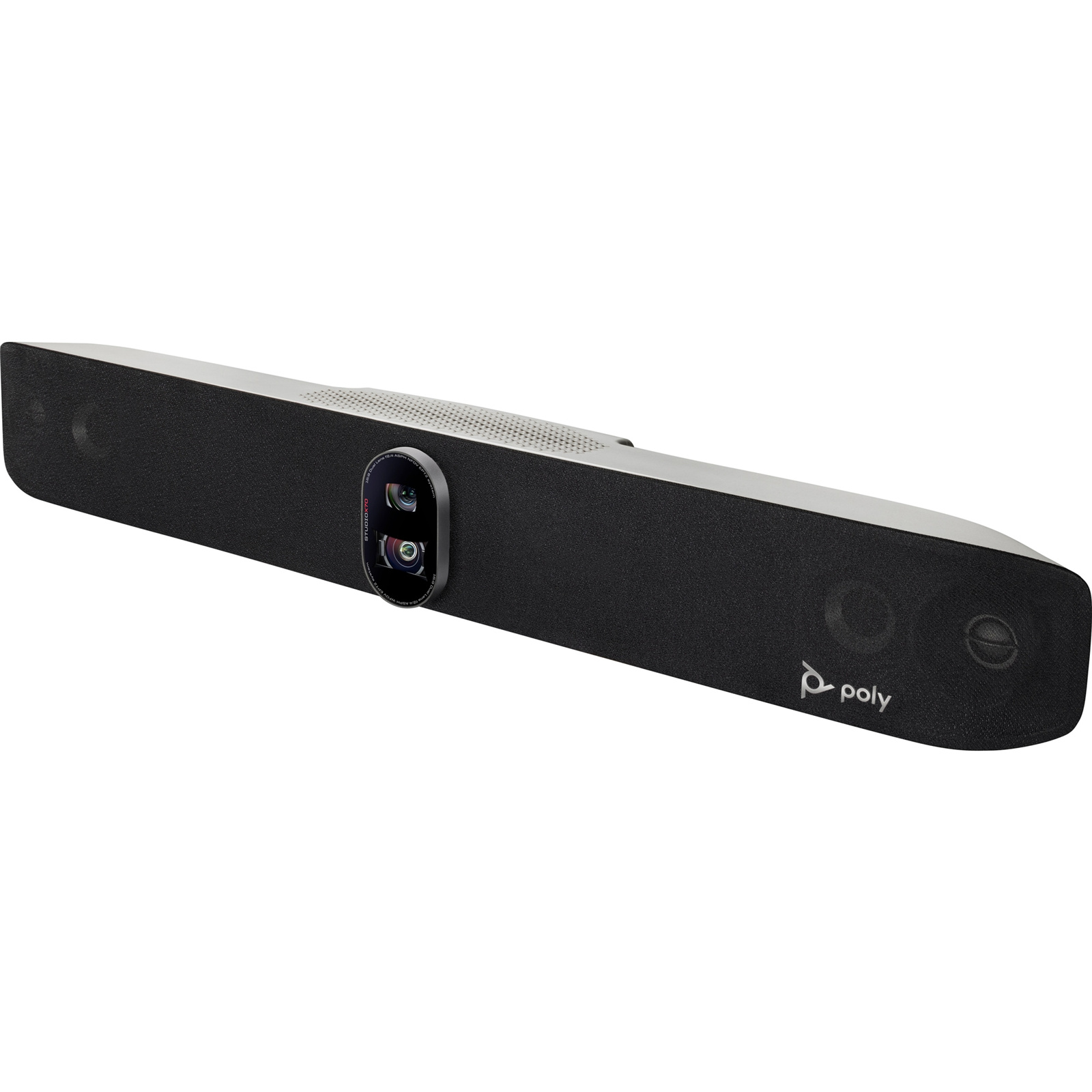

The Poly Studio X70, all-in-one video bar, offers quality audio and video performance in large meeting spaces. Enjoy pinpoint-accurate automatic framing and tracking modes, distraction-free audio technology, and lifelike 4K UltraHD video.
Crystal clear video
Ready for your close-up? This all-in-one video bar transitions seamlessly between wide and narrow-angle cameras, showing everyone in your large meeting spaces in sharp detail.
Production-quality performance
Keep your eye on the action with Poly DirectorAI intelligent camera framing and NoiseBlockAI technology - all powered by machine learning. Get advanced vocal pickup from our next gen microphones. Easily share content over wired or wireless connections.
PB Tech is a HP Gold Partner
Specifications
Audio
Poly NoiseBlockAI technology; Poly Acoustic Fence technology
Audio standards
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A
Camera resolution
2160p, 4K UHD (3840 x 2160)
Camera type
Dual-lens
Certified collaboration software
Zoom; Microsoft Teams; Google Meet
Content sharing
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input
Content video resolution (input)
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600)
Content video resolution (output)
UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768)
Diagonal field of view (dFoV)
140° (wide); 78° (narrow)
Digital signage
Appspace; Raydiant
Heat dissipation cooling
65 BTU/h
Horizontal field of view (hFoV)
120° (wide); 70° (narrow)
Interoperability
All cloud service providers through Poly Video App mode; USB Device mode; Support for native 3rd party applications including Zoom, Microsoft Teams, Dialpad, GoToRoom, RingCentral and StarLeaf
Lens cover capabilites
Integrated
Management Software
Poly Lens
Microphone pickup range (metric)
Up to 7.62 m
Microphone type
Two MEMS microphones; Two second-order microphones
Network capabilities
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP)
Non-Operating Humidity Range
5 to 95%
Non-operating temperature - Celsius
-40 to 70 °C
Operating altitude
4,877 m
Operating humidity range
15 to 80%
Operating temperature range
0 to 40 °C
Operating voltage
37 VA @ 120 V @ 60 Hz; 37 VA @ 230 V @ 50/60 Hz
People video resolution
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps
Physical security
Standard Kensington lock slot

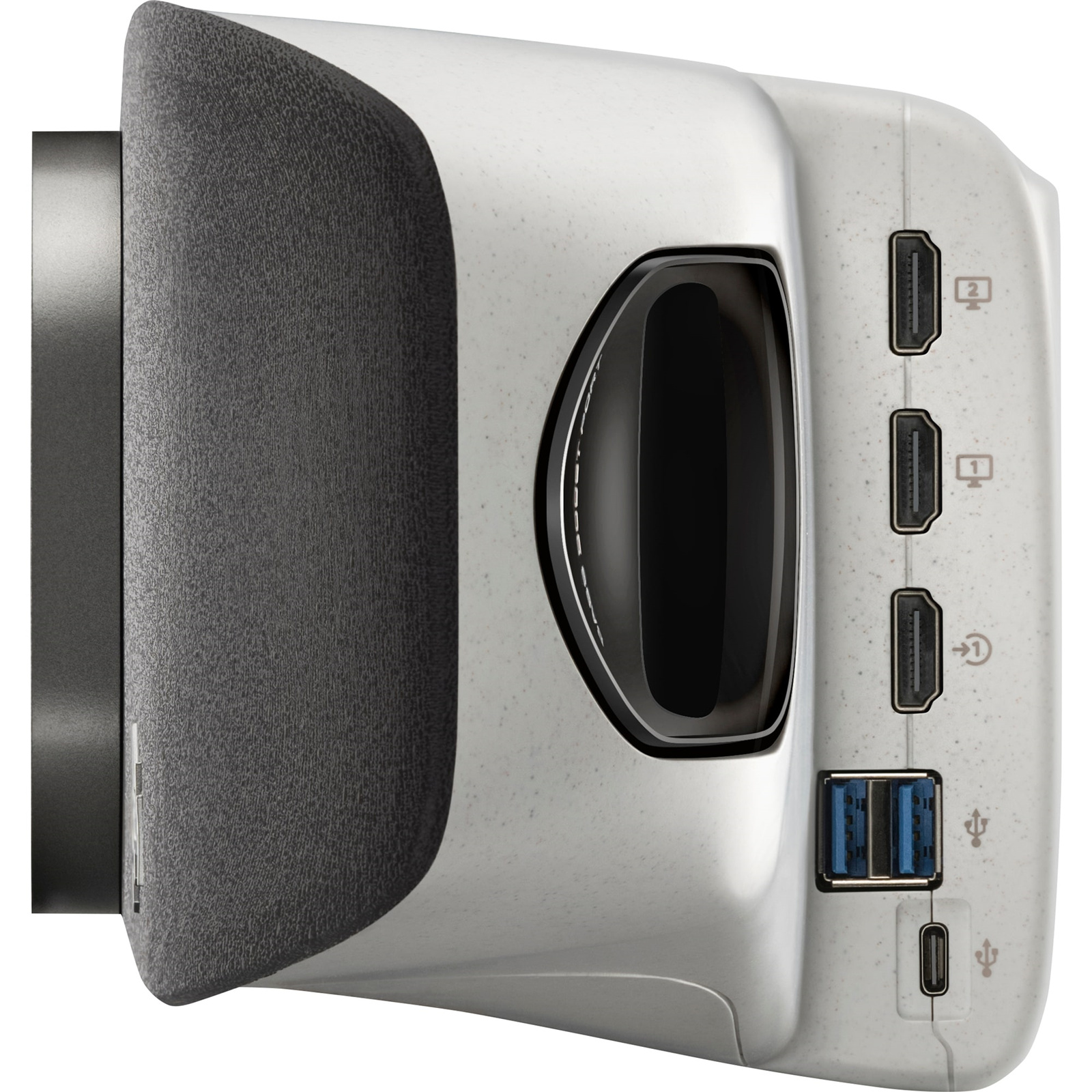

Ports
1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 2 RJ-45; 1 audio-in; 1 audio-out; 2 HDMI-out 1.4 (video); 1 HDMI-in 1.4 (audio)
Power supply type
External; Auto sensing
Registration required
No
Security management
AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; Local account password policy configuration; Security profiles; Local account and login port lockout; Secure defaults; Remote logging with support for TLS; Active directory external authentication; Binary Floor Control Protocol (BFCP)
Sensitivity (speaker)
83 dB (1 W/1 m) for mid speakers; 89 dB (1 W/1 m) for tweeter speakers
Smart camera technology
People framing; Group framing; DirectorAI perimeter; Speaker framing
Speaker output power
2 x 20 W (RMS for mid speakers); 2 x 30 W (maximum for mid speakers); 2 x 15 W (RMS for tweeter speakers); 2 x 20 W (maximum for tweeter speakers)
Speaker type
Two-way stereo speakers
Total camera resolution (megapixels)
2 x 20 MP
Video frame rate
5-30 fps (up to 4K resolution at 15 fps in call)
Video standards
H.264 AVC; H.264 High Profile; H.265
What's in the box

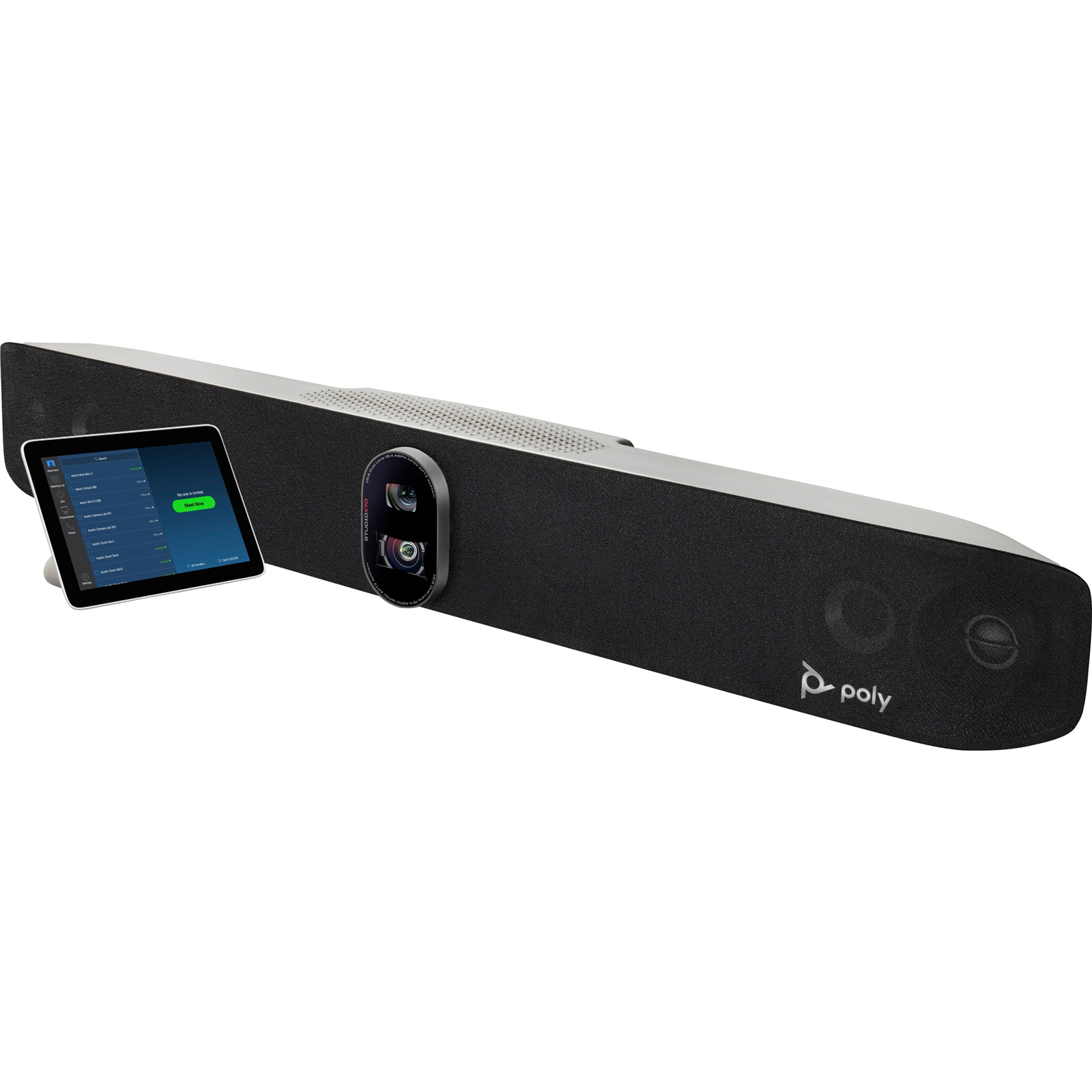

Poly Studio X70; Wall mount kit; AC power adapter; HDMI cable; Power cable; CAT 5E LAN cable; Poly TC8 touch controller
Wireless technologies
Bluetooth® 5.0; Wi-Fi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
Zoom capability
7.3x digital
